Initial Setup#

Enabling Python support in GTlab#

GTlab’s Python scripting is available through the GTlab Python Module, which can be installed either:

  1. During the initial GTlab installation, or

  2. Later via the GTlab Maintenance Tool.

To install, select the component:

GTlab 2.0 → Modules → GTlab Python (Python 3.X)

where X refers to the supported Python version.

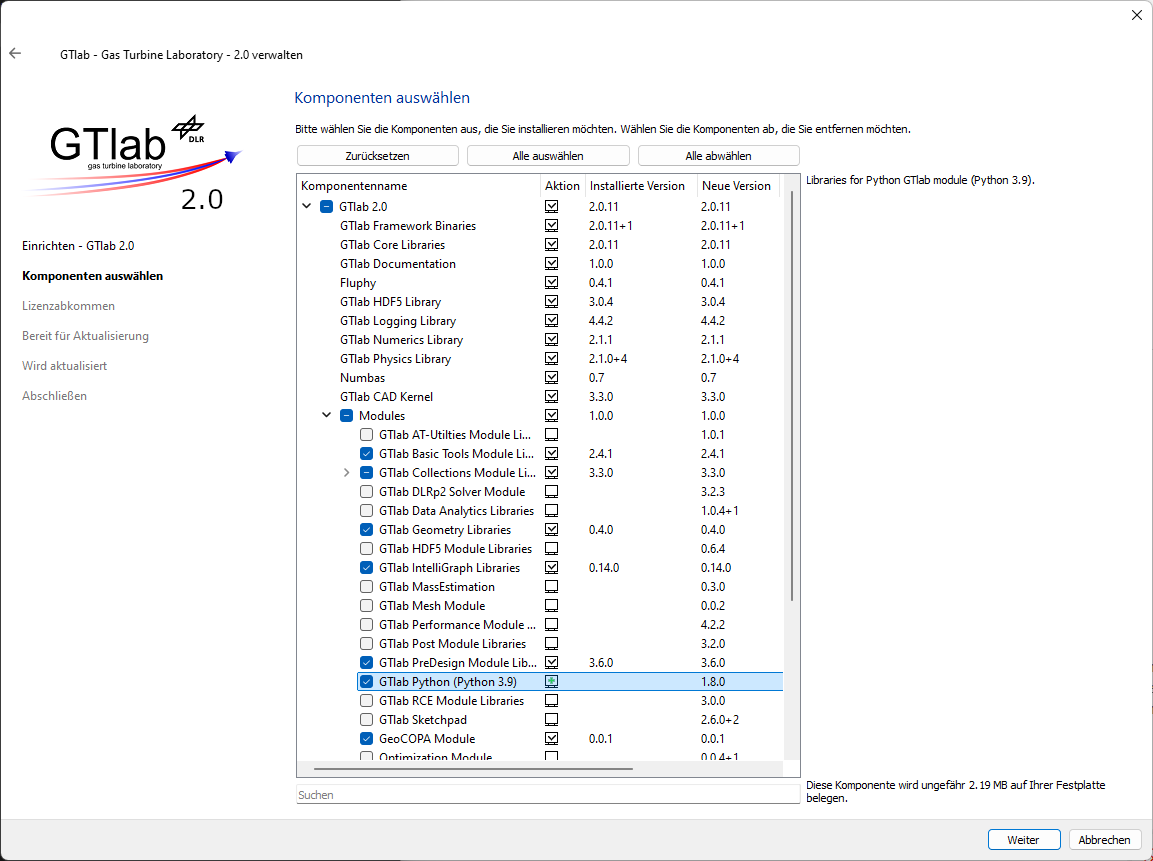

../_images/installation1.png

Note

The installer currently provides a pre-compiled Python module for Python 3.9 only. If you require GTlab with a different Python version, you must compile the module from source. See the instructions at: https://github.com/dlr-gtlab/python-module?tab=readme-ov-file#compiling-from-source

Setting up a Python Environment#

When launching GTlab for the first time after installation, you will be prompted to configure the Python environment.

../_images/first-start.png

This opens the Python Module settings page. To reopen it later, go to:

Edit → Preferences → Python

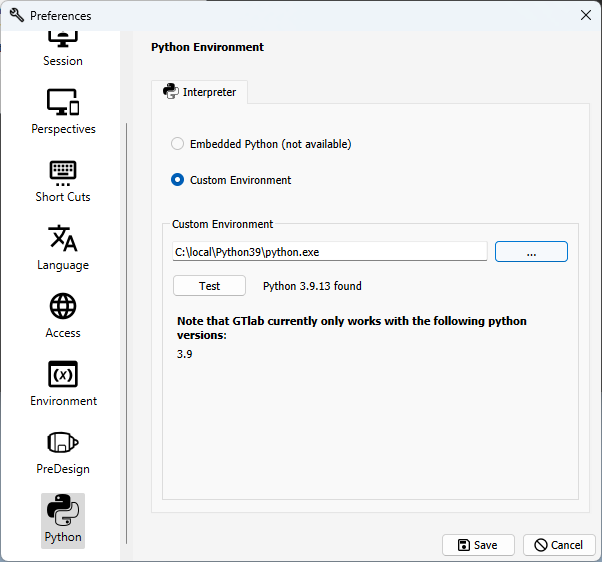

../_images/python-env-selection.png

On this page, select the Python environment that GTlab will use. GTlab supports:

  • System-wide Python installations

  • conda environments

  • virtualenv environments

Warning

The selected Python environment must use the same version as the GTlab Python Module. By default, you must select a Python 3.9 environment.

Using an Embedded Python Environment#

Optionally, you can ship GTlab with a dedicated Python environment.

To do this:

  1. Prepare a standalone Python environment.

  2. Copy it into:

    <gtlab_install_dir>/lib/python

When GTlab starts, it will automatically detect and use this embedded environment.

To switch between the embedded and a custom environment, open the Python Module settings again and select the desired option.

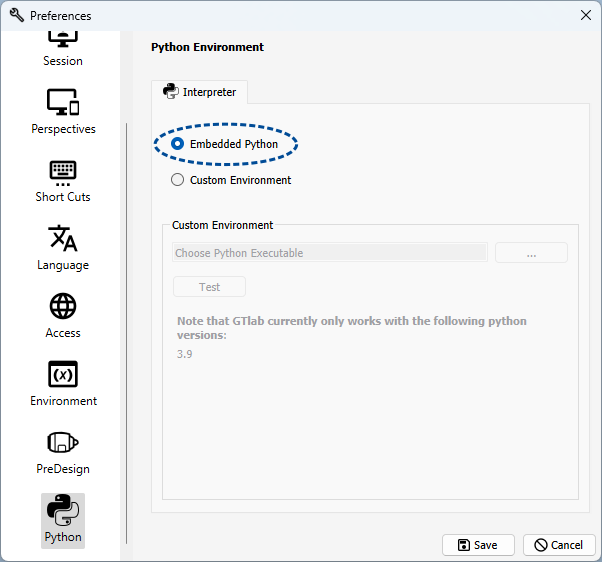

../_images/python-env-embedded.png
